Industrial-Grade Biomass Pellet Solutions

Advanced 8th-Gen Technology: High Efficiency & Eco-Friendly Pelletizing for Global Markets Featuring tungsten-carbide ring die construction & 18% denser pellet output vs. conventional models

Get Customized Quote

Transform Agricultural Waste into High-Energy Biomass Pellets

Compared with the traditional pellet machine with upper push device , the 8th Generation Biomass Pellet Machine mainly improves the feeding method, replace the upper push to down push device, which realize the continuous discharging and high pellet forming rate. At the same time, it is more convenient for the replacement of wearing parts as rind die, roller, etc, which extremely extends the service period of the pellet machine and improves productivity.

Advantages of the eighth generation biomass pellet machine

Down feed motor

Adopt bottom push device with a hard-toothed K series reducer for longer lifetime.
Ensure continuous discharge, the process is smoother and uninterrupted and keep no material residue here. Therefore the pellet temperature will be rapidly cooling.

Feeding tray display

Positive effect on pellet forming rate. It gain satisfied feedback amoug our client for the higher pellet forming rate.
With split-structure design and great hardness steel ball treated by high-frequency, to exteed the service life of feed gear ring.

Close-up of the upper shell of the pellet machine

Convenient maintenance, light weight of the upper cover for easy replacement of the ring die.

One-piece casting bearing

One-piece casting main shaft & Increased spline modulus To prevent damage to the spline shaft caused by hard start of the pellet mill.

Four disc bearings

The four pieces of bearing design is adopted to facilitate the disassembly and assembly of the main shaft, and the bearing adopts a split-structure design.

Gear oil flow meter

Added function for detection of reducer oil flow. When the flow is too low, an alarm will be triggered to protect the main shaft bearing and reduce losses.

This machine is suitable for a variety of raw materials

Woody materials like wood logs, wood branch, wood chips, wood shavings, other wood waste.
Agricultural waste like rice husk, sunflower husk, peanut shell, EFB palm fruit bunch, alfafa, bamboo, fruit shel, crop stalks.
Others like cow dung, EFB, coconut shell, bamboo, activated carbon, sugarcane bagasse, cement, ash, fertilizer,chemical, etc.

Rice-straw-scaled
Rice straw
rice husk
rice husk
Waste template
Palm fruit bunch

What is Bio-energy & Biomass Fuel

Bio-energy is a new environmental-protection energy, which can be made out of any agricultural or forest waste without any need for a binder or adhesive.

The equipment required varies by raw material. Below are standard configurations:
Wood Logs: Crusher → Hammer Mill → Pellet Machine → Cooler → Packer
Grass/Straw: Crusher → Hammer Mill → Pellet Machine → Cooler → Packer
Sawdust/Husk: Pellet Machine → Cooler → Packer
Key Notes:
Materials with >15% moisture require a dryer (position varies)
Coolers and packers are optional based on needs
Three configuration tiers available (High/Medium/Low output)

We provide a full range of biomass pellet equipment and wearing parts, equipped with on-site installation guidance services to help you stably produce high-density pellets

3 Years for the Gear Reducer
*The first year reducer gear teeth, bearing damage, free replacement gearbox
*second year reducer gear teeth, bearing damage, free replacement accessories
*in the third year reducer gear teeth, bearing damage, only accessories cost replacement maintenance.

18 Months for the Motor
Customers within 18 months after receiving motor:
abnormal sound, free replacement of new motor
too high temperature, free replacement of new motor
low current phenomenon; free replacement of new motor

Biomass pellet machine five piece set

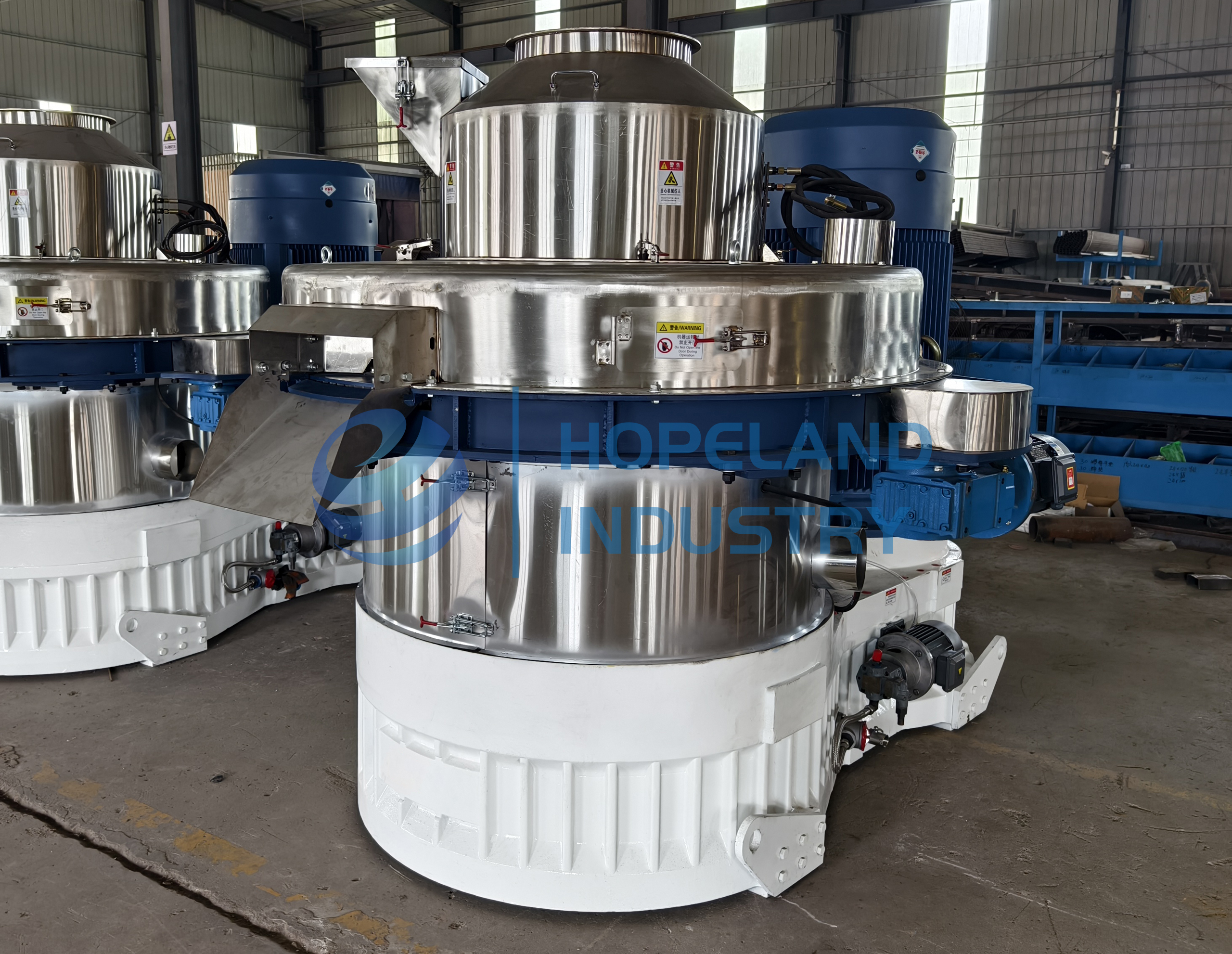

  • Pellet machine host

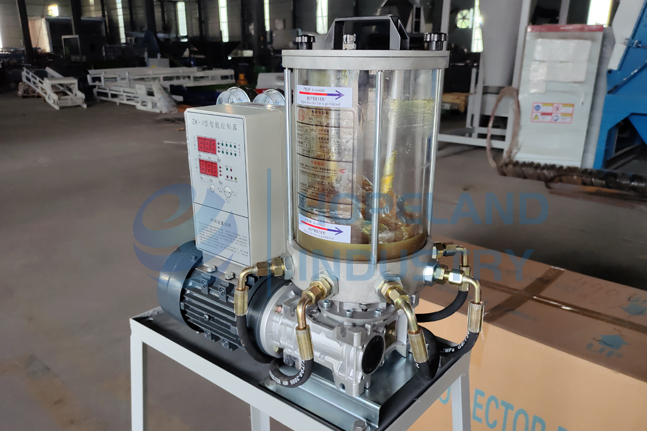

  • Automatic lubrication oil pump

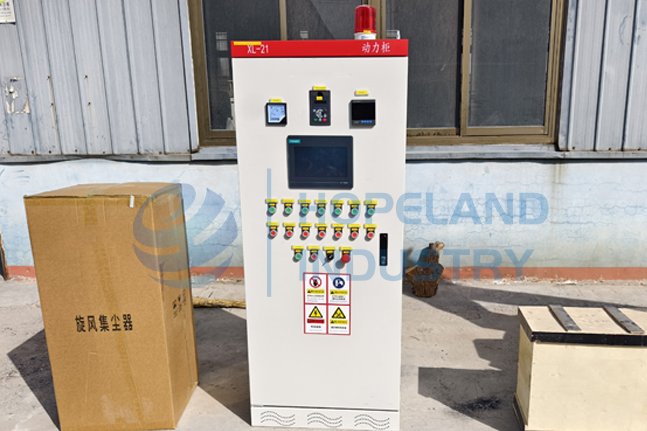

  • Electric control cabinet

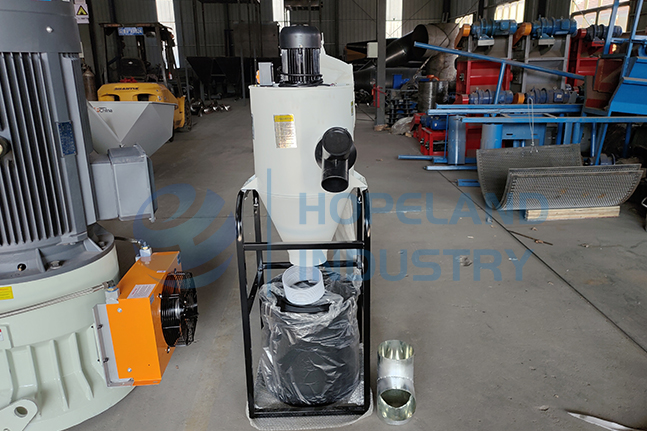

  • Cyclone dust removal

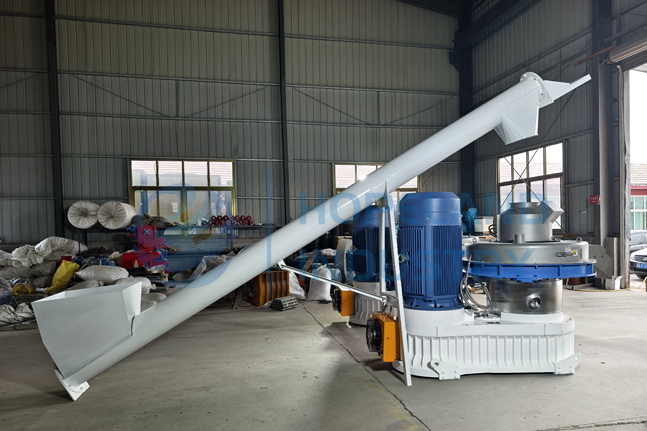

  • Feeding auger
Model
Power(kw)
Capacity(t/h)

Pellet Size(mm)

Dimension(mm)

Weight(t)

460

55

0.6-0.8

6-12

1700*1000*1580

3

560

90

1.2-1.5

6-12

2600*1650*1800

4.2

560

132

1.4-1.7

6-12

2600*1650*1800

4.6

560

160

1.7-2.2

6-12

2600*1650*1800

5.3

700

160/185

2.5-3

6-12

3100*1500*2100

8.6

850

250/280

3.5-4

6-12

3200*2100*2050

12.8
