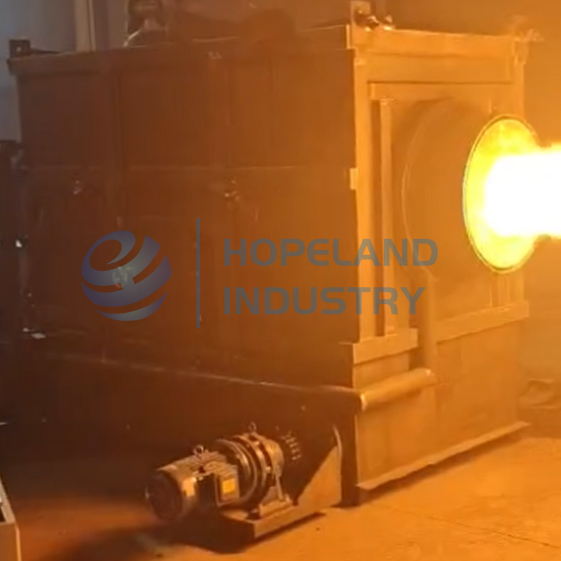

Automatic Chain Grate Pellet Burner

The chain grate pellet burner is an efficient and eco-friendly combustion system designed for burning biomass pellets. It features a moving chain grate that evenly distributes and transports pellets through the combustion chamber, ensuring consistent and complete burning. This system is widely used in industrial boilers, heating systems, and power generation due to its high thermal efficiency, low emissions, and automated operation.

Call To Action

Main Components

It can replace traditional heating systems such as oil or gas boilers, providing a more environmentally friendly heating option.

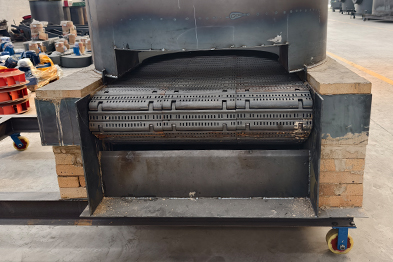

Chain Grate Feeding System

By adjusting the speed of the chain grate, the fuel supply can be controlled to regulate combustion efficiency.

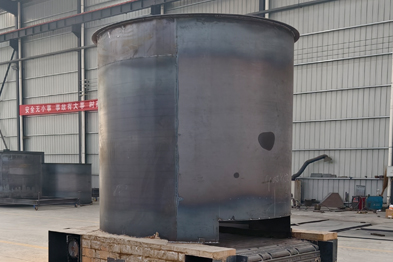

Combustion Chamber

The fuel is fully burned in the combustion chamber, producing high-temperature flue gas.
A well-designed airflow channel ensures complete combustion and low emissions.

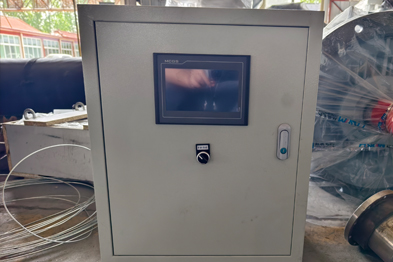

Control System

An automated control system that adjusts fuel supply, air flow, and combustion temperature to achieve efficient and stable operation.

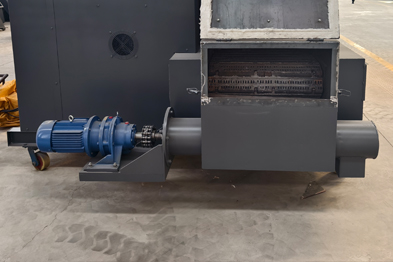

Ash Discharge System

An automatic or semi-automatic ash removal device for cleaning out ash residue after combustion.

Scope of application

Drying process
This machine is suitable for a variety of dryers
Metal smelting
High temperature processes such as aluminum melting and steel casting
Equipment heating
Boilers, paint booths, and other traditional projects
Environmental upgrade
Replace coal/oil burning systems and reduce carbon emissions
Model
Heat(Kacal/h)
power(kw)

Dimension(mm)

Weight(t)

45

0.45 Million

2.05

1900×850×2100

0.96

90

0.9 Million

3.75

2280×920×1850

1.5

120

1.2 Million

3.75

2450×1020×1980

1.86

180

1.8 Million

7

2700×1190×2100

2.64

240

2.4 Million

8.2

3050×1400×2300

3.1

300

3 Million

8.6

3200×1600×2600

4.3

360

3.6 Million

10

3850×1785×2720

4.8

420

4.2 Million

12

4150×1900×2800

5.1

480

4.8 Million

14

4460×2068×2900

5.65
